7 Inch HD CCTV Tester Monitor AHD CVI TVI CVBS SDI IP 4K Camera Testing 8MP Multimeter TDR Optical fiber VFL WIFI POE

7 Inch HD CCTV Tester Monitor AHD CVI TVI CVBS SDI IP 4K Camera Testing 8MP Multimeter TDR Optical fiber VFL WIFI POE

Regular price $440.00 USD
Regular price Sale price $440.00 USD
Sale Sold out
Ships From


install programs: support

external mobile hard disk mouse: support

WIFI Optical fiber VFL TDR: Built in

UTP Cable tester Multimeter: support

Sensor Size: FULL

Power plug: AU, US, EU, UK

Plug Type: EU plug

PTZ control: RS485

Origin: Mainland China

Model Number: IPC-XF

Maximum IR Distance(m): NO

IP camera testing: H.265 4K H.264

DC 24V 12V POE output: power supply for cameras

Certification: CE,FCC

Brand Name: Precamview

Analog AHD CVI TVI SDI camera testing: 8MP

7 inch touch screen LCD: IPS 1920X1200

Mode: IPC-XF 7" IP CCTV tester monitor PTZ control IP change PTZ

(1)IP H.265 4K+CVBS analog +AH/CVI/TVI 8MP camera tester

(2) H.265 4K H.264 IP camera display support Rapid onvif

(3)5V 12V 24V POE48V output. HDMI-compatible input&out  UTP Cable tester....updated

(4)Optical fiber power meter+Visual Fault Locator+Cable scan

The tester supportsChinese Simplified, Chinese Traditional, English, Germany, Spanish, Portuguese, Russian, French, Polish, Korean, Japanese, Turkish and Italian 13 languages

Packaging and Shipping

Product Highlights

Support external mobile hard disk, mouse, can be used as a small video recorder

Exclusive support 24V DC output, can give the ball machine power supply

Support H265 4K HD camera main stream image

Users can download and install their own android client program, support QQ WeChat installation

IPC XF Full functional model Features:

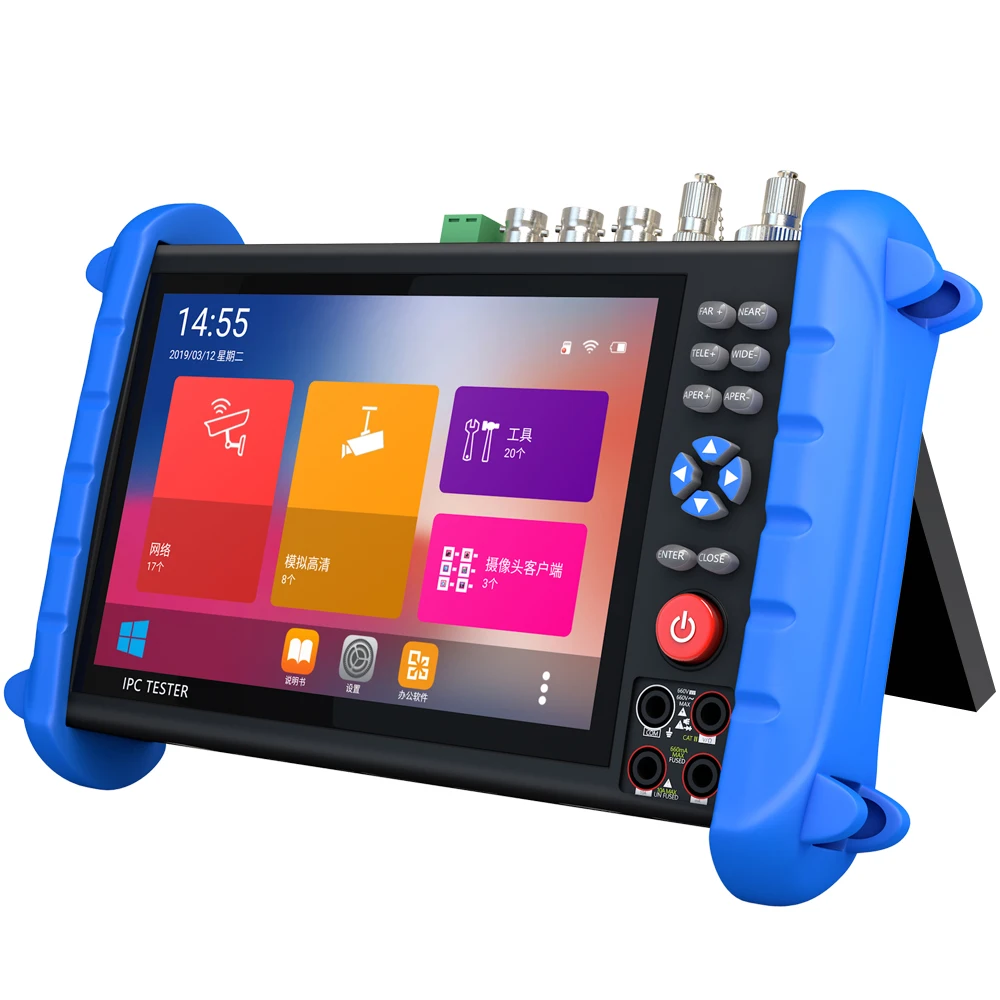

1. 7 inch full-view IPS screen, resolution 1920*1200, G + G structure touch screen, hard and wear-resistant, corrosion-resistant, high transmittance

2. 7.4V 7000mAh high-capacity polymer lithium battery, low consumption, screen auto sleep to save power, once charged work continually for 8-16 hours

3. 4K H264/H265/MPEG4/MJPEG IP camera mainstream test

4. CVBS NTSC/PAL format analog camera test

5. Coaxial HD 8MP TVI, 8MP CVI, 8MP AHD SDI camera test. Supports multimeter.

6. PTZ control, support PELCO-P, PELCO-D, SAMSUNG and other more than 30 kinds of protocols

7. Rapid ONVIF, automatically scan camera IP, rapidly play camera video, support camera parameter modification and mobile client installation

8. ONVIF-XVR multiple camera video display, support max 16 IP/CVBS videos display in one screen at the same time

9. Video image zoom, high definition hardware decoder for camera HD video real-time smoothly display, image magnificate max 8 times, support video snapshot or record

10. PoE power and PSE voltage test, test PSE device power supply status and output 48V/24W standard PoE power for camera

11. Red light source, send laser light to test optical fiber breaking, cracking, twisting faults

12. Optical power meter (wavelength: 850/1300/1310/1490/1550/1625nm)

13. USB 5V/2A power output, supply power for camera or charge mobile phone, also used to connect keyboard, mouse or U disk device

14. One channel audio input, support audio recording, one channel output for earphone

15. HDMI-compatible input, test DVR, support 1080P 60fps

16. Network cable test, check cable connection status and wire sequence, etc

17. Network cable TDR test, look for cable breakpoint, support max 1000m, test cable length, attenuation, impedance, reflectivity and delay skew parameters

18. Network cable tracking function, search the other end of a wire by digital signal, completely no noise, accuracy adjustable, anti-interference, won't be destroyed even when the other end is connected to DC60V PSE, support distance max 3000m

19. Internal SD CARD 8G storage and external replaceable MicroSD card

20. FTP tool, transfer files in LAN freely without SD card reader

21. 10/100/1000M Ethernet interface, built-in 150M wireless WIFI, support WIFI hotspot

22. IP address scan tool, rapidly search out camera or other device IP address

23. PING tool, easy to check Ethernet connection status

24. Screen projection, no network flow consumption, support IOS, Android, WP, black berry etc

25. Bright white LED lamp, easy to work in dark area

26. DC12V/3A, DC24V/1A power output, supply temporary power for all kinds of cameras including PTZ

27. Support Chinese, English, Spanish and other more than 10 kinds of languages, Built-in multi-language electronic manual

28. Built-in explorer, RTSP player and other Android applications

29. Support software online or local upgrate
